Automatic Industrial quick high speed roller shutter door

  • 1 - 4 Sets
  • >=5 Sets
Blue Dark Grey Orange Red White Yellow Clear Green
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
ST--001(High Speed Door)
Surface Finishing:
Door Material:
Open Style:
To your order
PVC Curtain Color:
Red,Blue,Yellow,Orange,Green,Grey,White,Black etc
Special Function:
High Speed
Motor brand:
SEW & SEJ & Nord
Frame material:
Aluminium/Stainless steel/Cold rolled steel
CE for all parts
Curtain thickness:
0.8mm & 1.5mm
Curtain material:
PVC fabric & PVC sheet
Shuotian high speed door
Product name:
High speed door
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood case + Plastic sheet
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

High Speed Door.

Shuotian high speed doors are designed for fast open and close, allowing people and/or equipment to move quickly through the opening. This type of doors is ideal for large size opening and designed for high performance daily use both internally and externally with minimal maintenance. The door operated as speed > 1m/s, this model doors offers beneficial energy saving in both commercial and industrial application. In additional it reduces noise and dust from nearby working areas. It was ideally choice for many commercial and industrial application...

FrameWork Material
1.Power Coated Steel Fame
2.Aluminum Track
3.Stainelss Steel Frame: S.S 201 & S.S 304
High speed Motor
1.German SEW & Nord
2.China SEJ or Tube Motor
Size from 0.75JW - 2.2 KW accordingly to different speed door size
Command System
Radar Sensor, Floor Sensor, Remote Control, Push button, Rope Swtich ect
Control Panel
1. Japan Mitsubishi
2. China Holip


1. Door curtain: High strength polyster textile fiber
2. Curtain thickness: 0.8 - 1.2 mm
3. Opening speed: 0.8 - 1.5 M/S
4. Closing speed: 0.6 - 1.0 M/S
5. Side Rail options: 2.0mm thick cold-roll steel sheet (Bao Steel) / 2.0mm thick stainless steel
6. Tube shaft: 114mm diameter / 2.5mm thickness round tube
7. Cover box options: 1.0mm thick cold-roll steel shett (Bao Steel ) / 1.0mm thick stainless steel
8. Motor brand: SEW / NORD
9. Motor power: 550W / 750W / 1500W / 2200W / 4000W
10. Control box: HOLIP / MITSUBISHI
11. Safety performance: Airbag / Photo cell

12. Optional control mode:Loop Sensor, Radar, Remote control, Linkage interlock, Pull rope, etc..

Accessories Detail

Gear Box.

Nord brand(German), Size from 0.75~3.0KW).

Explosion-proof motor.

Size from 0.75~1.5KW.

Tube Motor.

Size from 0.55~1.2KW.

Production Workflow

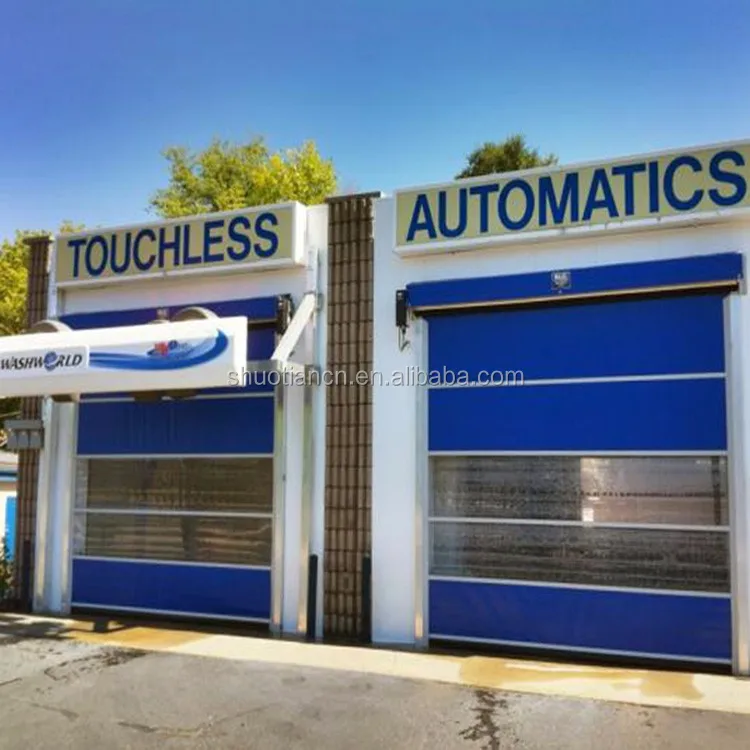

Carwash: Each machnine with 2 door at exit and entrane

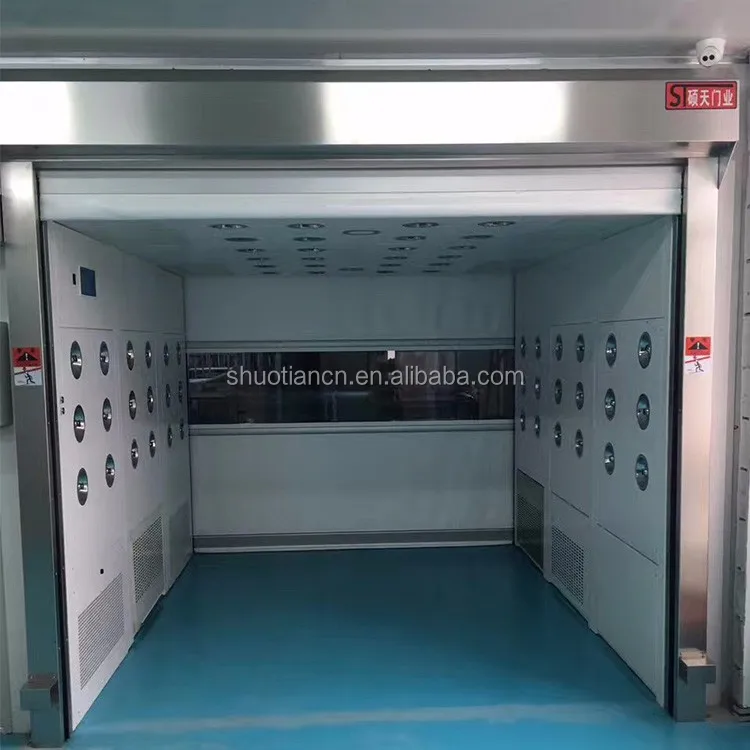

Airshower: airshower room with 2 door, it can active with sensor, And open door with airshower's command

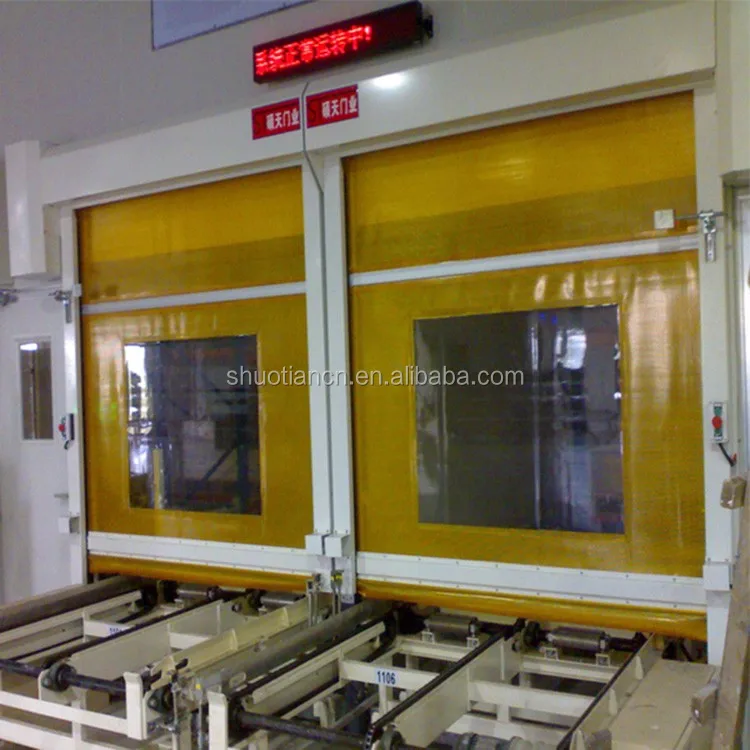

Convey Belt: Use for cargo in and out when delivery via convey belt

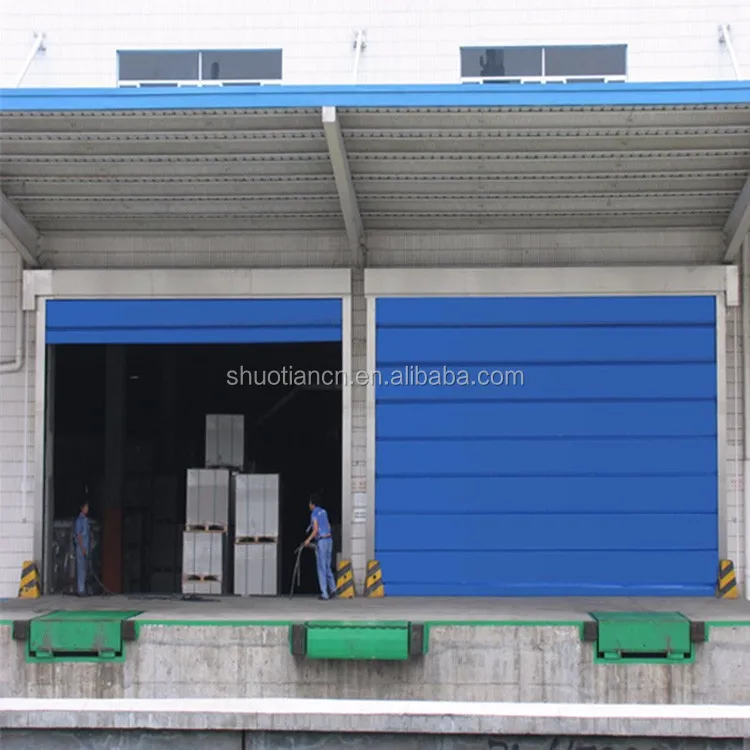

Dock leveler& Warehouse: Fix with Dock leveler, For truck load and unload cargo into warehouse and keep heat inside

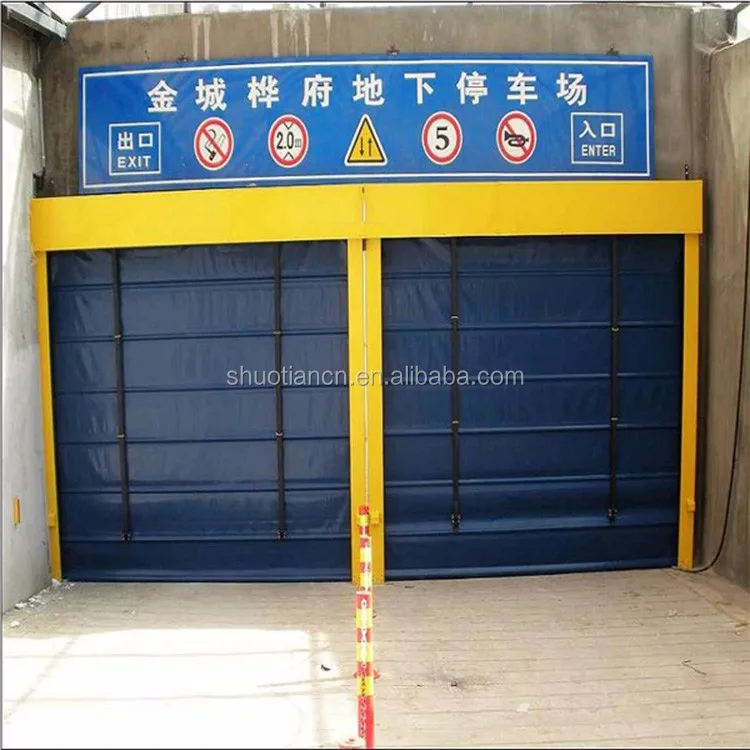

Parking lots: The door operation with floor sensor or key car to control the car in& out of packing lots.

Cold room: High performance operation to keep the cool air inside, Cutain can be aluminum & pvc insulated panel.

Packing & Delivery

Plywood Case.

Inside with plastic sheet & Cardboard

Our Company
Guangzhou SHUOTIAN industrial door Co.,ltd specialized in high speed door, industrial door, Swing door and different type rolling door. High speed door could work with Radar & Loop sensor and other command system. High speed door could use as Logistic warehouse doors, And cleanroom doors. High speed door could widely use for many place.

Our Advantage:
1. Shuotian industial door been involed in industrial door manufacture for over 15 years.And have a lot experience for different appliaction arear
2. We been cooperate with many famous company. Like KOHLER/AVON/HONDA/TOYOTA/PEPSI.AMWAY ETC
3. We been export doors to over 30 country

4. We been cooperated with many famous factory.


1. What's the delivery time?
For common order, 7 days only

2. How long warranty for the doors?
We provide 12 month warranty for all doors and accessories.

3. Do you provide OEM Service?
Yes. We do provide OEM Service

4. How about the package?
Plywood case or Cardboard,Accordingly to your choose

5. What's the MOQ?
We accepte 1 set as trail order

Related Products

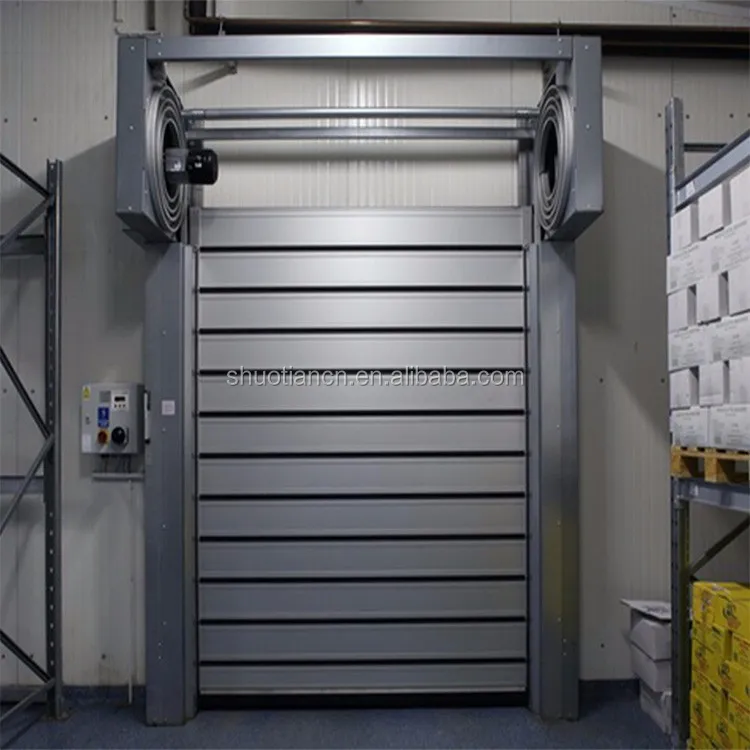

Rigid Speed Sprial Door.

High speed door system, Panel made of Aluminum PU slat, Insulated, security and durable.

Stacking High Speed Door.

Combine speed operation and high anginst wind abality. Cross bar as steel pipe for larger size door.

Zip Door(SD or Tube motor).

Sidetrack with Zip, Suitable for interior application, Self-repaire.New desigen with tube motor.

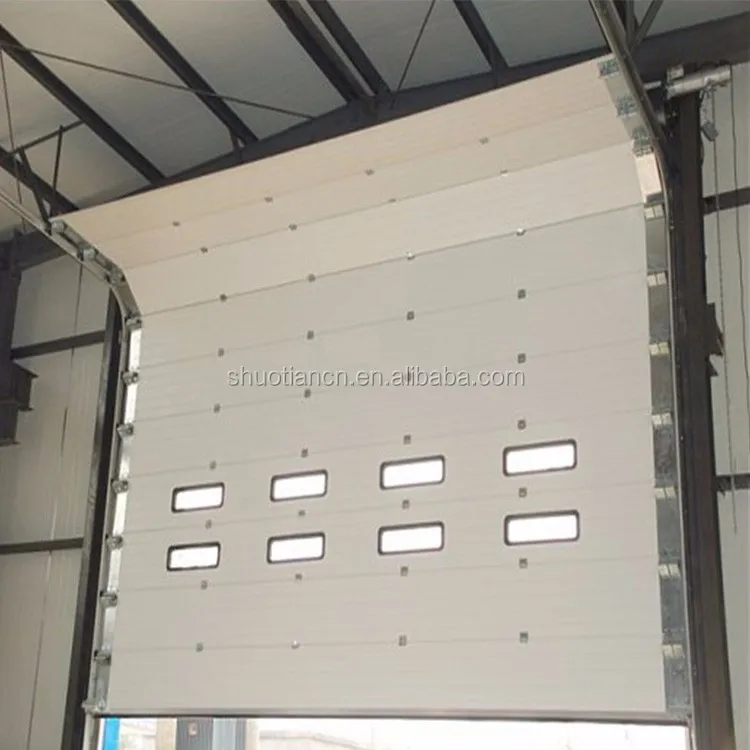

Sectional Industrial door.

40mm insulated panel, High security and Soundproof, Heat insulation etc. Use for warehouse, dock leveler etc.

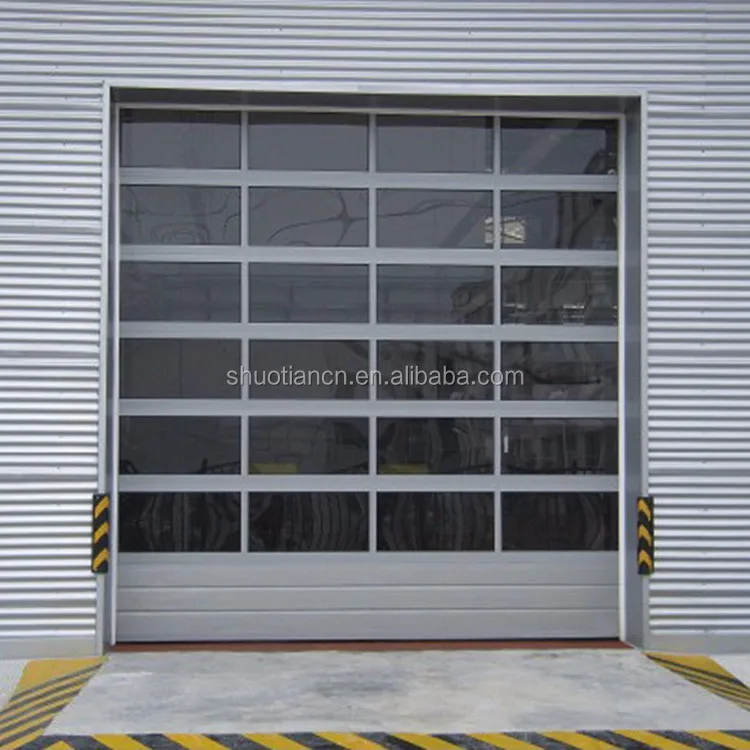

Glass Sectional door.

PC Panel or Glass panel with sliding system, Use for 4S Shop, Warehouse, Garage Etc.

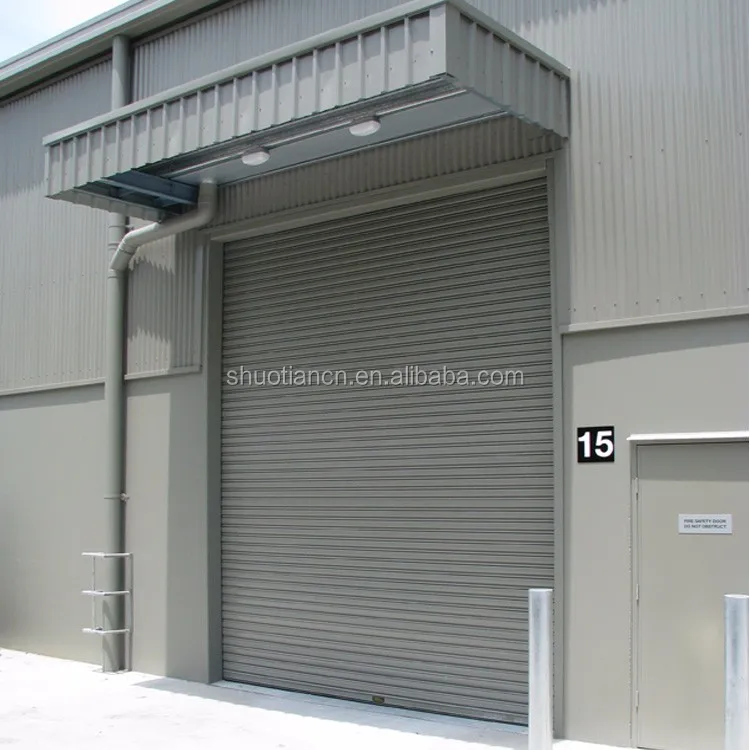

Metal Roller Shutter Door

Material option: Steel, Color sheet, Aluminum, Stainless steel etc, with mesh, grill, normal design.
